Analog Multimeter with LED Indicator & Buzzer for Continuity Test - Includes Test Leads (YX-360TRE-L-B)

<ul> <li> <strong>Handheld Analog Multimeter:</strong> Traditional needle-type pointer meter for precise and reliable measurements with fuse and diode protection</li> <li> <strong>Versatile Functionality:</strong> Wide range of measurement capabilities, including AC/DC voltage, DC current, and resistance. It's perfect for electrical troubleshooting, DIY projects, and basic electronic repairs.</li> <li> <strong>Continuity LED &amp; Buzzer:</strong> The built-in LED and buzzer provide a visual and audible indication when continuity is detected, making it easier to identify faults and malfunctions in circuits.</li> <li> <strong>Compact and Portable Design:</strong> Weighs 8.4 ounces (with batteries installed) and features a compact size (<span>6" x 1¼" x 4")</span> for on-the-go tasks.<br> </li> <li> <strong>Includes:</strong> Analog multimeter, test leads, user manual, 9V battery, and two AA batteries. <strong>Note: Requires a Phillips screwdriver to insert or replace batteries.</strong> </li> </ul> <h3>Specifications:</h3> <ul> <li> <strong>DC Voltage</strong> <ul> <li>Ranges: 0.25/0.5/10/50/250V/1000V (Accuracy at FSD: ±3%, 1000V: ±5%)</li> <li>Sensitivity: 20k Ω/V (extendable to 25k Ω/V with optional HV probe - not included)</li> </ul> </li> <li> <strong>AC Voltage</strong> <ul> <li>Ranges: 10/50/250V/1000V (Accuracy at FSD: ±4%, 1000V: ±5%)</li> <li>Sensitivity: 9K Ω/V</li> </ul> </li> <li> <strong>Decibels</strong> <ul> <li>dB: -10 to +22dB. 0dB = 1mw/600Ω.</li> </ul> </li> <li> <strong>DC Current</strong> <ul> <li>Ranges: 100µA (at 0.25VDC position), 2.5mA. 25mA. 0.25A.</li> <li>Accuracy at FSD: ±3% (10A: ±5%)</li> <li>Volt drop: 250mV</li> </ul> </li> <li> <strong>Resistance</strong>&nbsp; <ul> <li>Ranges:&nbsp; <ul> <li>x1 - 0.2Ω up to 1kΩ (midscale at 10Ω)</li> <li>x10 - 2Ω up to 10kΩ (midscale at 100Ω)</li> <li>x100 - 20Ω up to 100kΩ (midscale at 1kΩ)</li> <li>x1K - 200Ω up to 1MΩ (midscale at 10KΩ)</li> <li>x10K - 2KΩ up to 10MΩ (midscale at 100KΩ)</li> </ul> </li> <li>Accuracy at FSD: ±3%</li> </ul> </li> <li> <strong>Iceo:</strong> 150µA - 15mA - 150mA</li> <li> <strong>hFE:</strong> 0 - 1000 (via transistor testing socket - transistor testing attachment not included)</li> </ul>

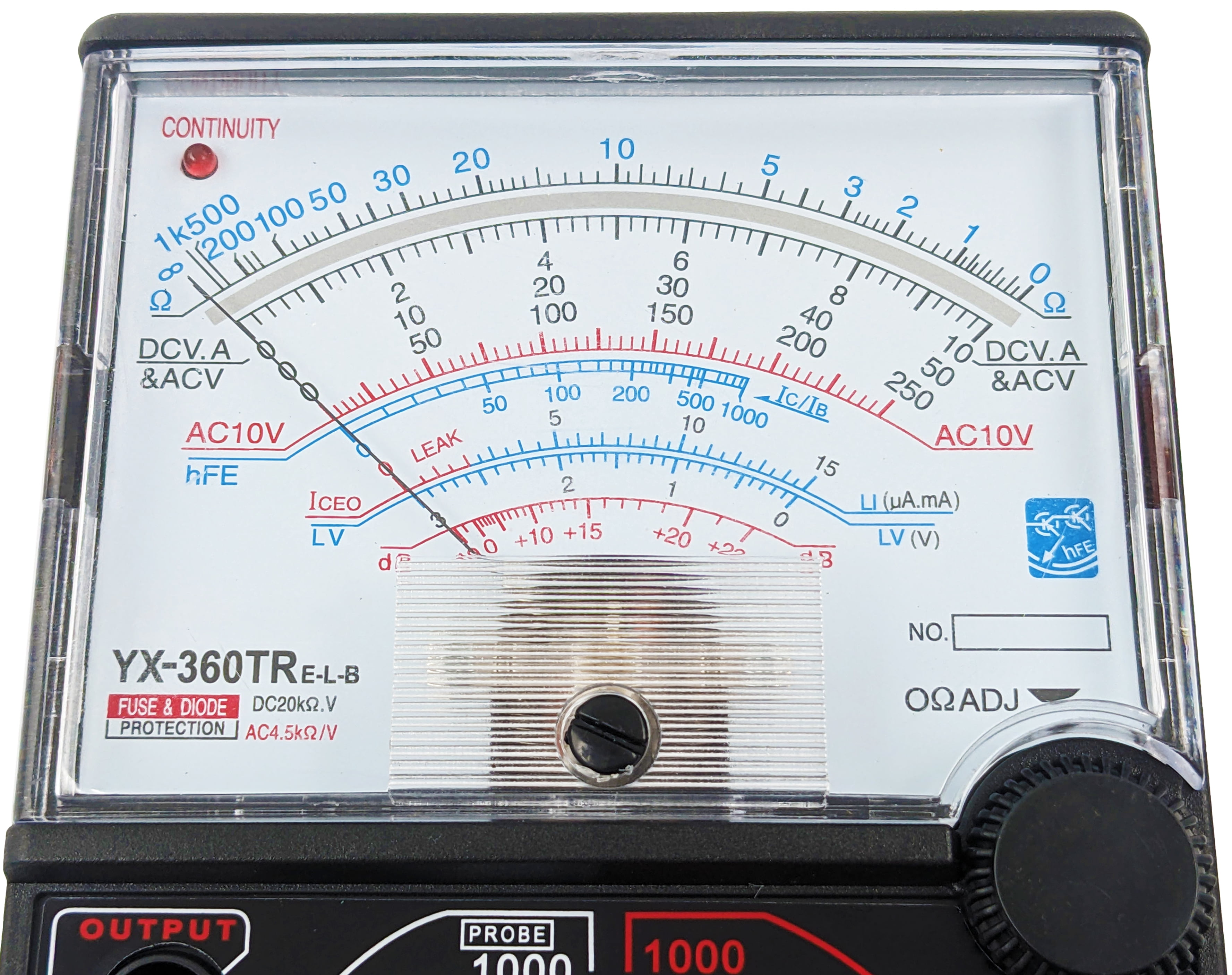

• Handheld Analog Multimeter: Traditional needle-type pointer meter for precise and reliable measurements with fuse and diode protection
• Versatile Functionality: Wide range of measurement capabilities, including AC/DC voltage, DC current, and resistance. It's perfect for electrical troubleshooting, DIY projects, and basic electronic repairs.
• Continuity LED & Buzzer: The built-in LED and buzzer provide a visual and audible indication when continuity is detected, making it easier to identify faults and malfunctions in circuits.

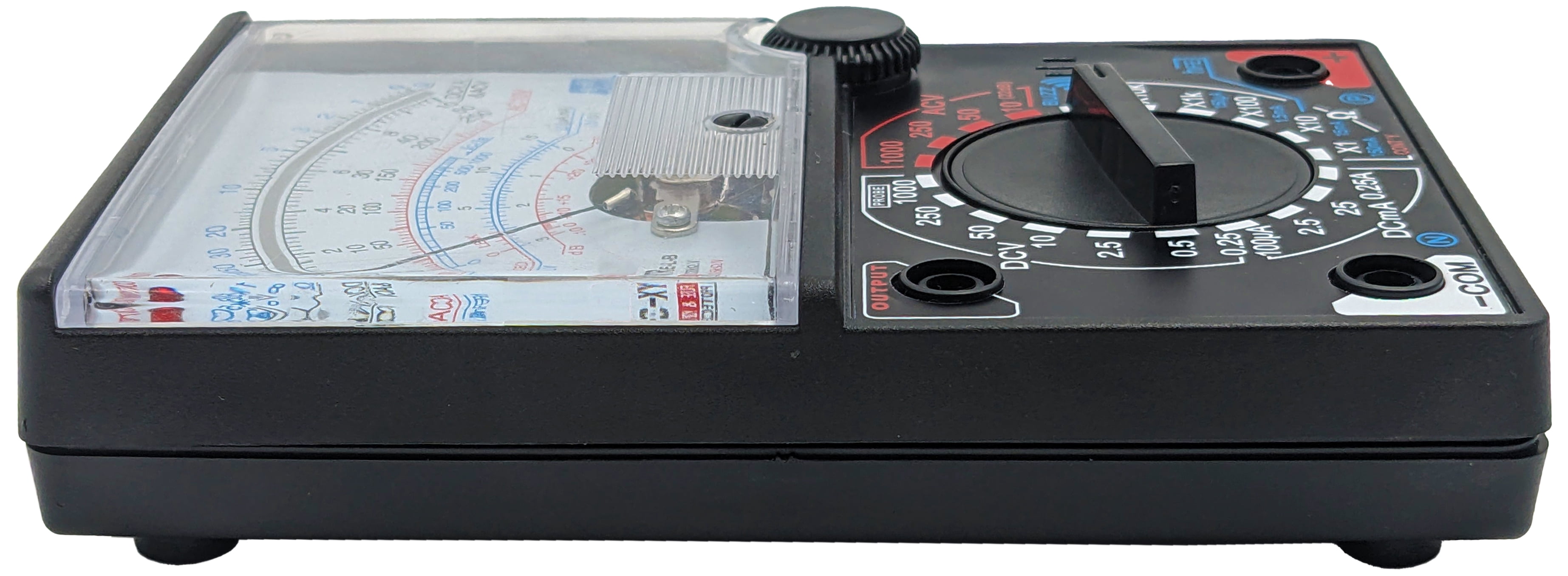

• Compact and Portable Design: Weighs 8.4 ounces (with batteries installed) and features a compact size (6" x 1¼" x 4") for on-the-go tasks.

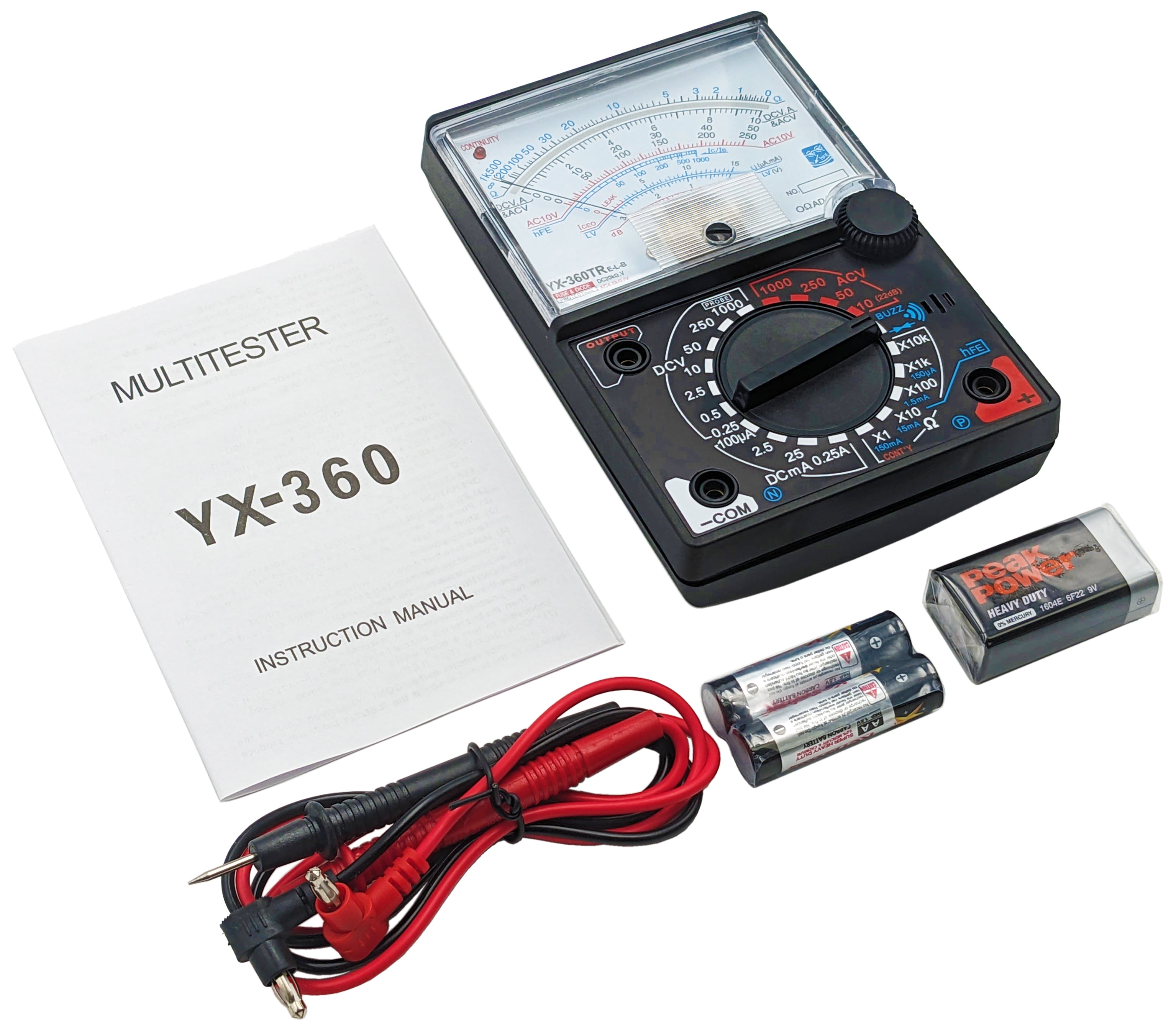

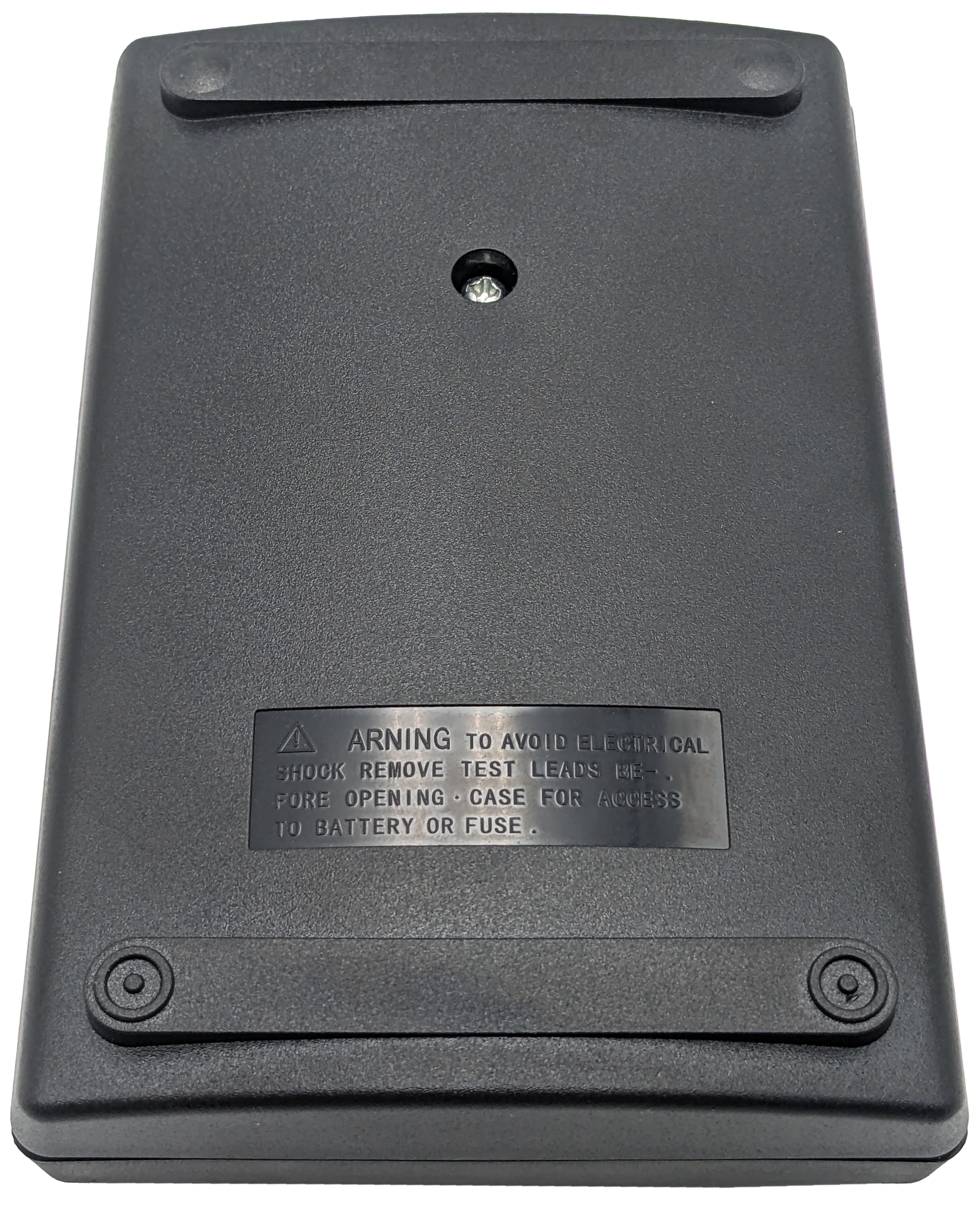

• Includes: Analog multimeter, test leads, user manual, 9V battery, and two AA batteries. Note: Requires a Phillips screwdriver to insert or replace batteries.
